hbying products have passed the strict certification and adopt the industry-leading advanced technology to ensure the best quality.

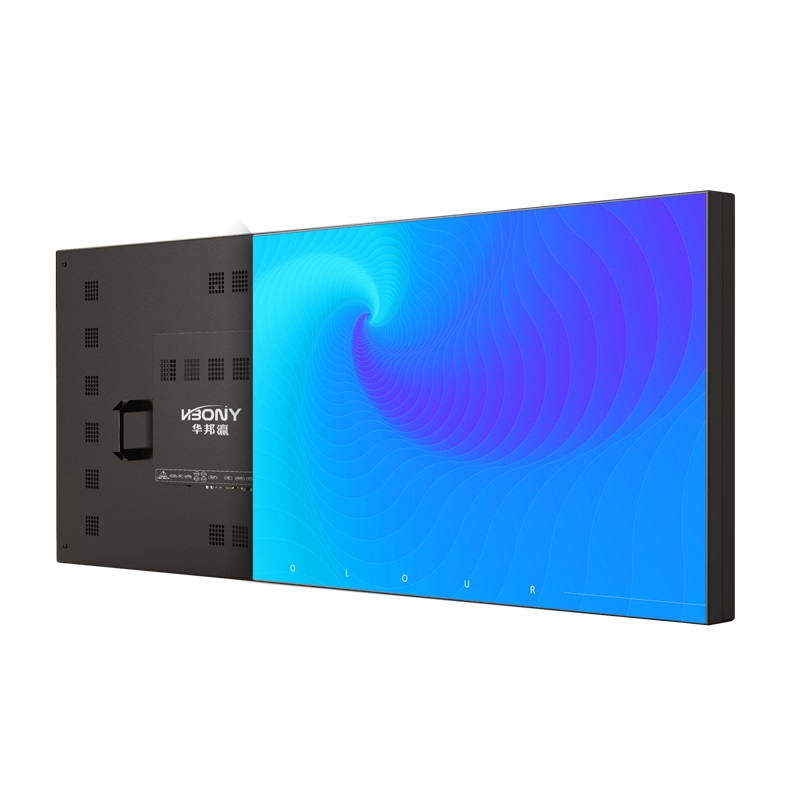

46 inch BOE 3.5mm LCD splicing screen Display parameters
|
Product number
|
HBY-PJ460P
|
Screen size
|
1018.08mm*572.67mm
|
Bilateral seam
|
3.5mm
|
| Brightness | 700 cd/m2 | Appearance size | 1021.98*576.57*125.7mm | Power waste | 180W/h |
| Contrast ratio | 3500:1 |
Startup response time |
6ms | Resolving power | 1920*1080 |
| Viewing angle | 178° | Weight | 26KG | Service life | 6W hours |

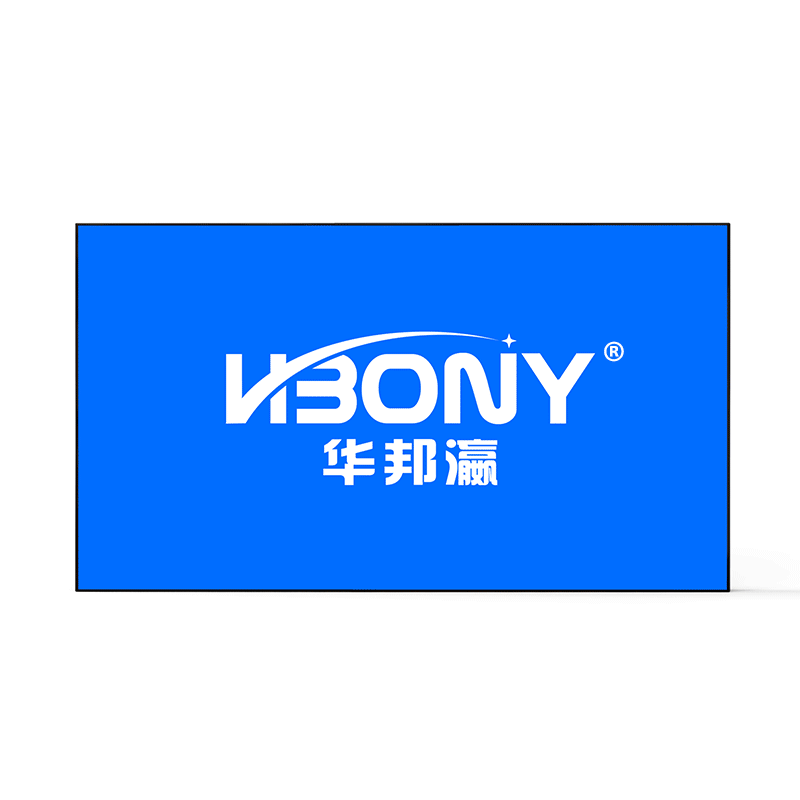

Ultra narrow frame design, perfect visual feast
The 3.5mm splicing narrow frame design makes the display between the screens almost seamless. The width of the left / top border of the splicing display screen is 2.5mm, the width of the right / bottom border is 1.3mm, and the frame spacing is only 3.5mm when splicing multiple screens

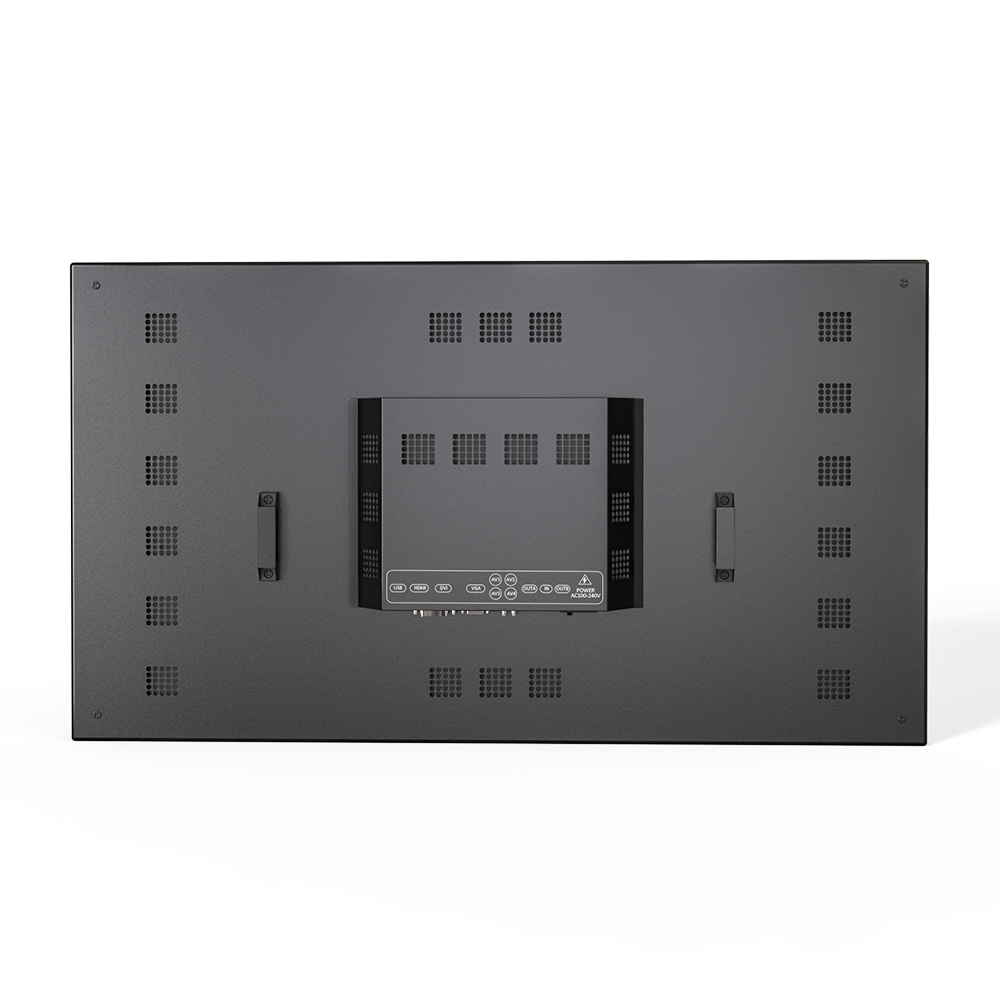

LCD splicing unit, multi view angle analysis
Intelligent split screen, single screen, multi screen arbitrary combination
Diversified image mosaic display, the size and position of the display signal window can be set, and the functions such as combination display, stretching and image roaming can be realized easily
Application environment
It can be used in various environments
LCD splicing screen parameter table
| LCD screen | Size | 46 inches |
| Display area | 1018.08mm*572.67mm | |
| Equipment size | 1021.98mm*576.57mm*125.7mm | |
| Resolving power | 1920*1080 | |
| Pixel spacing | 1.75mm*1.75mm | |
| Brightness | 700cd/m2 | |
| Contrast ratio | 3500:1 | |
| Color | 16.7M | |
| Gamut | 0.72 | |
| Viewing angle | 178° | |
| Response time | 6ms | |
| Physical seam | 3.5mm | |
| Image | Proportion | 16:9 |
| Wave filter | 3D comb filter, digital noise reduction | |
| Video format | PAL/NTSC | |
| Input port | HDMI | 1-way HDMI 1.41920* 1080@60HZ Downward compatibility |
| DVI | 1-way DVI-I, 1920* 1080@60HZ Downward compatibility | |
| VGA | 1-way VGA (DB-15), 1920* 1080@60HZ Downward compatibility | |
| AV | 2-way AV, 1920* 1080@60HZ Downward compatibility | |
| USB | 1 channel, supporting video, picture and audio playback | |
| RS232 | 1-way RS232 | |
| Ring out port | AV | 2-way AV, 1920* 1080@60HZ Downward compatibility |
| RS232 | 2-way RS232 | |
| Electrical performance | Input | AC100-240V wide voltage input |
| Power waste | 180W | |
| Standby power | 0.5W | |
| Environmental Science | Storage temperature | -20~ 65°C |
| Working temperature | 0~ 50°C | |
| Weight | Net weight | 26KG |
